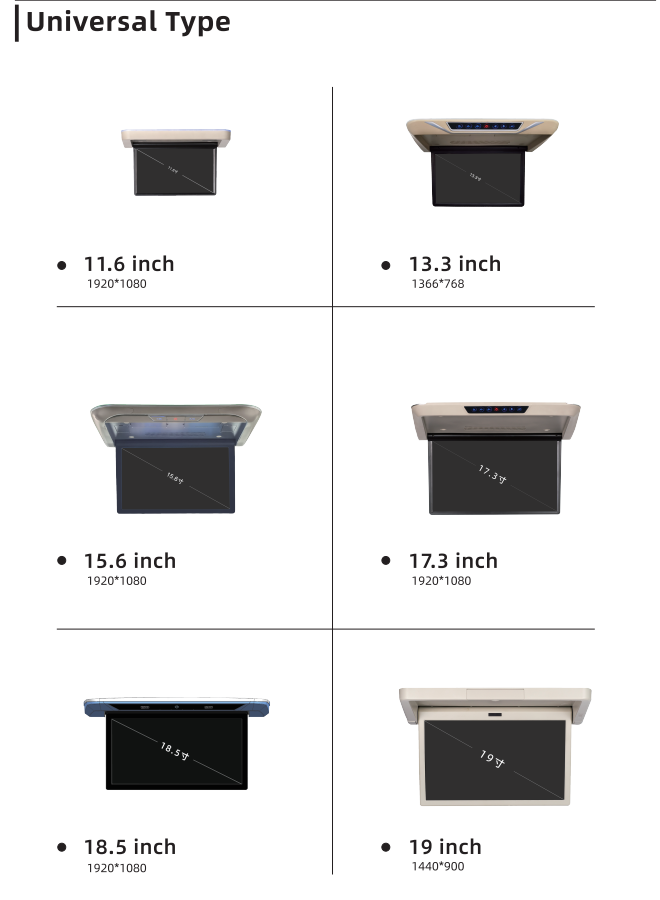

11.6 inch
Product features
| 1. Non destructive installation,dedicated bracket | 6. Opening method: electric / manual (manual can be upgraded to electric) | ||
| 2. Karaoke module (optional), featuring a plug-in design | 7. Voice function, voice control (iFlytek), voice flip | ||
| 3. Built in electronic mixing console, unique in the industry | 8. The first aluminum alloy front frame in China | ||
| 4. 4G network (optional), featuring a plug-in design | 9. Dual motor control for flipping, anti-collision damping | ||
| 5. Pointless remote control (voice key) | 10. USB/TF expansion |
HDMI input (optional)
Audio output (optional)
Power cord
Insert air conditioning controller
Connected to the air conditioning controller cable
Rear air conditioning controller power adapter cable
Machine parameters
| Working voltage | DC9~16V |
| Working current | <1.5A |
| Quiescent current | 0 |
| Flipping current | <1A |
| Atmosphere light | 256 colors |
| Horn | 2*8Ω 2w |
| Control mode | Line control, remote control, voice control (optional), buttons |
| Net weight | 3.2kg |
| Package size | 510*356*150mm |
| Bag size | 3.7kg |
System parameters
| System | Android9.0 |
| CPU | 8*Cortex - A5 |
| Running memory | 2G |
| Body memory | 32G |
| Bluetooth | 4.2 |
| USB | 2-way 2.0 |
| WIFI | Dual frequency 2.4G/5G |
| Audio | MP3/WMA... |
| Video | MP4/MPG/AVI/MKV... |
| Picture format | JPG/PNG... |
Screen parameters
| Size | 11.6 inch |
| Display scale | 16 : 9 |
| Luminance | 250 nits |
| Contrast ratio | 500:1 |
| Viewing angle | IPS |
| Resolution | 1920*1080 |
| Operation Temperature | 0°~50° |
| Interface type | eDP |
| Barklight type | LED |
| Touch - Optional | Capacitive screen |
-
